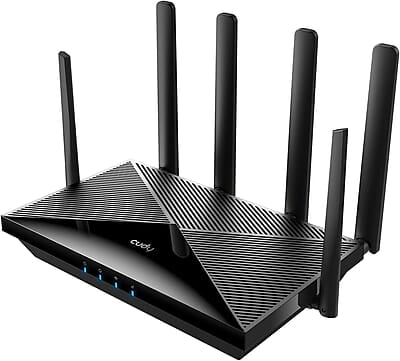

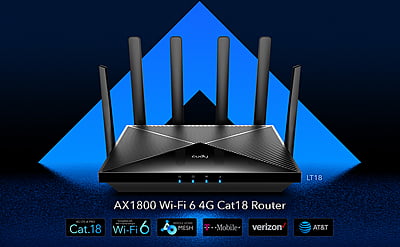

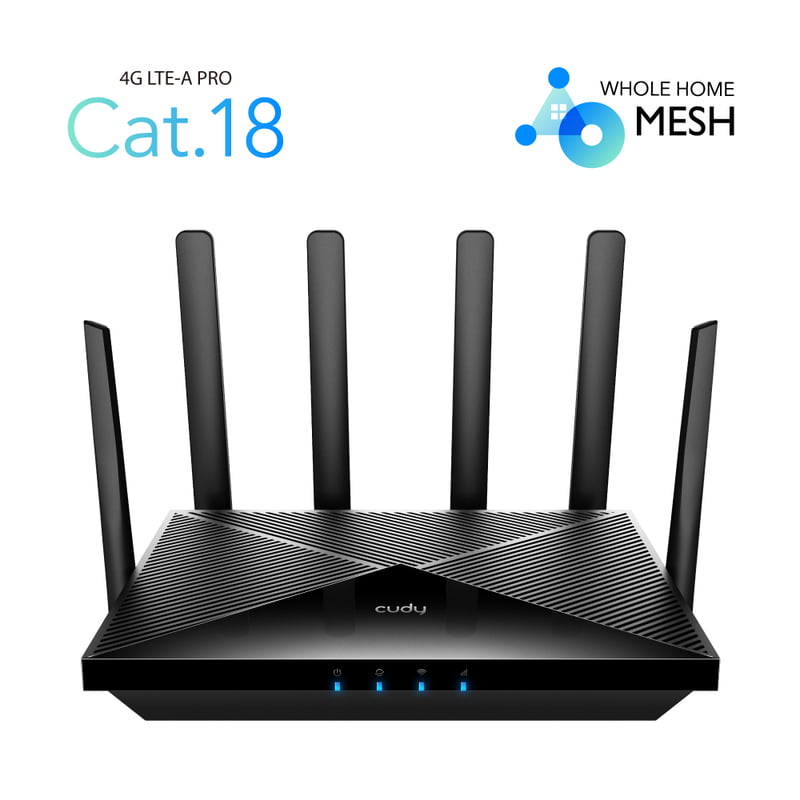

Cudy AX1800 Wi-Fi 6 4G Cat18 Router LT18

Redundant SIM Slots
Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto select by Cudy.

WAN Internet, 4G Backup
Set WAN/LAN port as WAN to enable Cudy use the landline internet from WAN, and 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

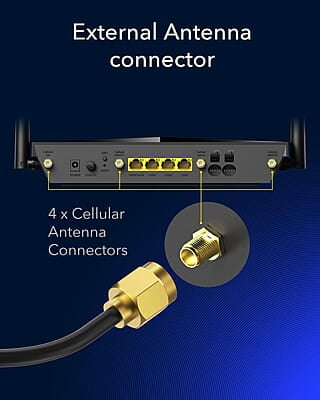

External SMA Antenna connector
Combined with 4 detachable SMA Antenna interface to connect outdoor cellular antennas for better and stable signal.

4G Band Lock
4G band lock make it possible to lock the 4G working frequency to one or several bands to keep the stability of operation. TTL Settings
Support manual set TTL values to meet ISP's requirement(such as Verizon, Visible).
Support set IPv4 TTL and IPv6 HL Values. DNS over TLS
Support DNS Encryption with CloudFlare or NextDNS or Google, protects your privacy, prevents eavesdropping and manipulation of DNS data via man-in-the-middle attacks.

Specifications

Model AX1800 Wi-Fi 6 4G Cat18 Router
Data Speed Wi-Fi 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps)
5GHz (802.11ax/ac/an/a, MIMO 1201Mbps)
LTE LTE FDD: Max 1.2Gbps (DL)/150Mbps (UL)
LTE TDD: Max 545Mbps (DL)/90.6Mbps (UL)
DC-HSPA+ 42 Mbps (DL)/11.5 Mbps (UL)
WCDMA WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
Hardware CPU: Mediatek Dual Core 880MHz
4G Module: Quectel EG18 (Qualcomm)
DRAM: 256MB (2Gbit) DDR3
Flash: 16MB (128Mbit)
4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
2 x SIM Slots (Nano)
1 x WPS Btton
1 x Reset Button
2 x Fixed WiFi Antennas

4 x Detachable Cellular Antennas
LED indicators (Power,WiFi,Internet,Signal)
Software DHCP:Server, Client List, Address Reservation
NAT:Port Forwarding, Port Triggering, UPnP, DMZ
Firewall:Mac Filter, IP Filter, Domain Filter
Management:Parental Control, Guest Network
DDNS:Compatible with 20 more DDNS providers
VPN Client:PPTP/L2TP/OpenVPN/WireGuard
DNS over TLS: Cloudflare/NextDNS/Google
Schedule: Schedule Reboot /Wi-Fi Schedule
Internet Protocol version 4 or 6 (IPv4/IPv6)
Quality of Service (QoS)
IPTV / VLAN configuration
TTL configuration(Extend/Spoof)
Band Selection
Mobile Frequency Band Europe/Middle East/Africa/Asia Pacific/Brazil LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
WCDMA: B1/B3/B5/B8
North America LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD: B41
WCDMA: B2/B4/B5
Physical Product Dimension: 253x152.5x48.2mm (LxWxH)
Package Dimension: 415x265x90mm (LxWxH)
Power AC Power Adapter: Input: 90~260V Output: 12V, 1.5A
DC input (12V-1.5A) Barrel Plug
SMS Send Message
Receive Message
USSD
Environmental Operation Temperature: 0° C to +45° C
Storage Temperature: -40° C to +70° C
Relative Humidity: 5% to 95% Non-Cond
Package Contents 4G LTE WiFi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)

● 4G LTE advanced CAT.18 CPE (DL 5 × CA,256 QAM, 4 × 4 MIMO)
● AX1800 dual band Wi-Fi (2.4GHz & 5GHz)
● Dual SIM slots (Nano)
● 4*Gigabit Ethernet Ports
● 4*Detachable Cellular Antennas
● 2*Fixed WiFi Antennas
● DNS over Cloudflare/NextDNS/Google
● WireGuard/OpenVPN/PPTP/L2TP clients
